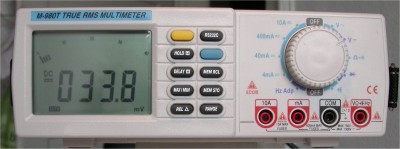

Tischmultimeter M-980T / M980R / MS9803
Hersteller: -
Anbieter: McVoice, Mastech,...
ProfiLab-Makro und Beispiel hier downloaden!
Seriell : 9600,NONE,7,2
Format : Ascii Code, Hex Code
Datensatz : 11 bytes
The serial data output twice on each A/D conversion cycle.
BYTE 1 : - - - +/- Batt - OL
+/- : 0 for positive, 1 for negative
Batt : 0 for normal, 1 for low battery
OL : 0 for normal, 1 for Over Range
BYTE 2: Ascii code of measurement value (MSD ~ LSD)
BYTE 3: Ascii code of measurement value (MSD ~ LSD)
BYTE 4: Ascii code of measurement value (MSD ~ LSD)
BYTE 5: Ascii code of measurement value (MSD ~ LSD)
BYTE 6 : Unit / Messbereich
0000000 DC V
0000001 AC V
0000010 DC mA
0000011 AC mA
0000100 Ohm
0000101 Buzzer
0000110 Diode
0000111 ADP
0001000 DC A
0001001 AC A
0001010 Hz
0001011
0001100 CAP
BYTE 7 : Range / Messbereich
0000000 400mV,4mA,400ohm,10kHz,4nF
0000001 4V,40mA,4kohm,100kHz,40nF
0000010 40V,400mA,40kohm,1000kHz,400nF
0000011 400V,4000mA,400kohm,4uF
0000100 4000V,4Mohm,40uF
0000101 40Mohm,100Hz
0000110 1000Hz
Diode : 4V range
Buzzer : 400ohm range
DC A and AC A : 40A range
BYTE 8 : Special Function I
- - - max min rel hold
0 for normal, 1 for the function
BYTE 9 : Special Function II
- - - mem auto manl apof
0 for normal, 1 for the function
BYTE 10 : CR (Carrage Return)
BYTE 11 : LF (Line Feed)
|
Messbereiche
|
|
|
|
|
|
|
|
XXXX
|
V
|
A
|
OHM
|
Hz
|
F
|
|
|
AUTORANGE
|
0,4
|
0,004
|
400
|
10.000
|
|
0000000 400mV,4mA,400ohm,10kHz,4nF
|
|
|
4
|
0,040
|
4.000
|
100.000
|
0,000000040
|
0000001 4V,40mA,4kohm,100kHz,40nF
|
|
|
40
|
0,400
|
40.000
|
1.000.000
|
0,000000400
|
0000010 40V,400mA,40kohm,1000kHz,400nF
|
|
|
400
|
4,000
|
400.000
|
|
0,000004000
|
0000011 400V,4000mA,400kohm,4uF
|
|
|
4000
|
|
4.000.000
|
|
0,000040000
|
0000100 4000V,4Mohm,40uF
|
|
|
|
|
40.000.000
|
100
|
|
0000101 40Mohm,100Hz
|
|
|
|
|
|
1000
|
|
0000110 1000Hz
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
XXXXXXXXX
|
V
|
A
|
OHM
|
Hz
|
F
|
|
|
FAKTOR
|
0,1
|
10
|
0,000100
|
0,000010
|
10000000
|
Bereichskenner
|
|
1000000
|
|
|
|
10.000
|
|
6
|
|
100000
|
4.000
|
4.000
|
4.000
|
10.000
|
|
0
|
|
10000
|
4.000
|
4.000
|
4.000
|
10.000
|
4.000,000000000
|
1
|
|
1000
|
4.000
|
4.000
|
4.000
|
10.000
|
4.000,000000000
|
2
|
|
100
|
4.000
|
4.000
|
4.000
|
|
4.000,000000000
|
3
|
|
10
|
4.000
|
|
4.000
|
|
4.000,000000000
|
4
|
|
1
|
|
|
4.000
|
0,001
|
|
5
|
